CantiLover assembly guides
Four guides, one hinge. Pick the stand you printed: each guide has a picture of every step, the parts to print, print tips and a FAQ with the numbers.
Every picture is a render of TeamGraphika's master files, exactly as he drew them, not a photo of a print. The colours are ours: in the step pictures, the parts a step adds are pink, the parts already on are blue. The stands are TeamGraphika's, shown with his permission; we host no files.
Which stand did you print?
-
CantiLover
Heavier trays, bins with covers, the original design.
9 steps, CantiLover V4 files
Open the CantiLover guide -
CantiLover Light
Thinner trays, dividers in each tray, no covers in the base kit.
11 steps, CantiLover Light V3 files
Open the Light guide -

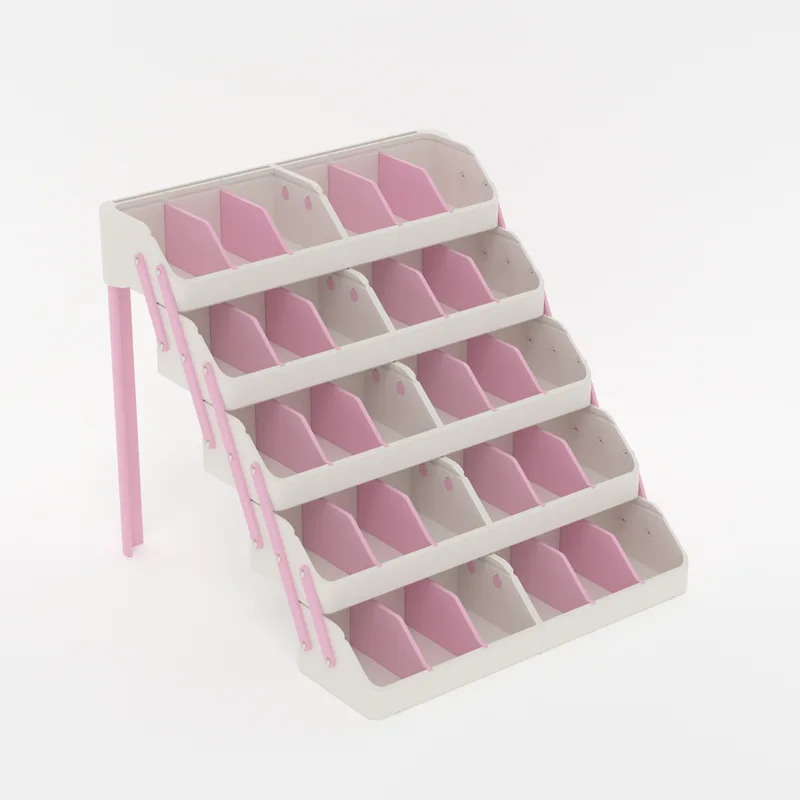

CantiLover JUMBO 180/256
Twice the width of the Light, each tier in two halves joined down the middle with dovetail keys and rivets.
13 steps, CantiLover JUMBO V4 and V5 files
Open the JUMBO 180/256 guide -

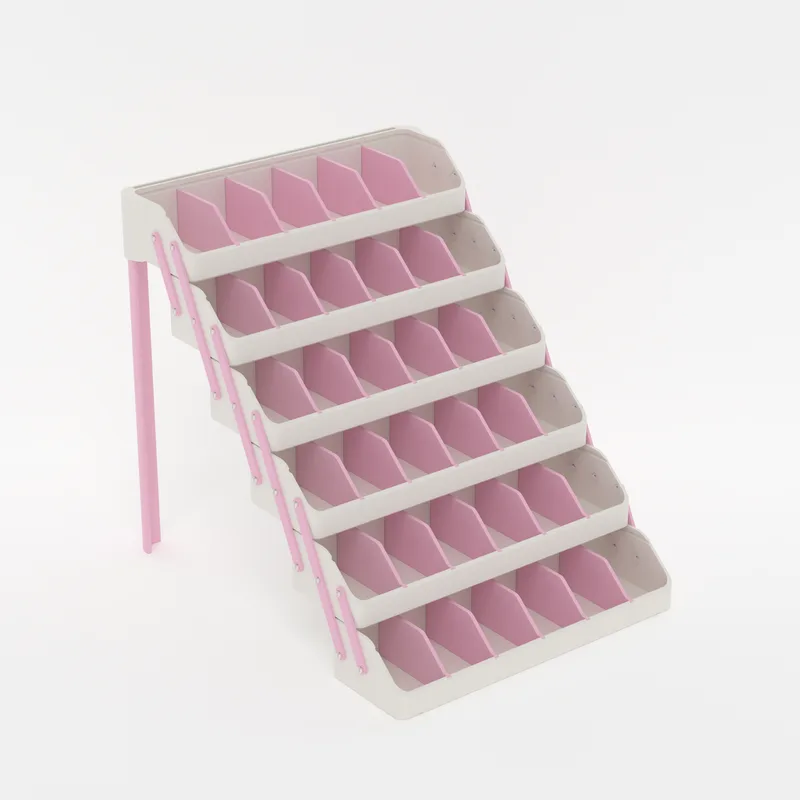

CantiLover JUMBO 320
Twice the width of the Light, each tier one full-width tray printed on a 320 bed, no seam.
10 steps, CantiLover JUMBO V4 files
Open the JUMBO 320 guide
One hinge, every stand
They all go together the same way: pins first, from inside every tray; dividers or bins; legs into the Top tray; then the arms, bottom to top. The JUMBO on a 180 or 256 bed adds two steps at the start, keying and riveting each tier's two halves.
- TeamGraphika's figures: the original takes about 34 hours and 1,350 g for trays and bins with covers; the Light about 26 hours and 1,070 g, at 2 walls and 10% infill.
- Pins at 0.12 mm layers, or the 45-degree pin at 0.16 mm, in PETG. Fine layers are what stop them snapping at the barb.
- Built for a 256 x 256 bed; the Light tray inside is about 234 x 94 x 57 mm with four bays of about 55 mm (TeamGraphika, in the comments).
Questions and numbers
The measurements, counts and settings, kept out of the steps. Tap a question to open it.
Which stand do I have?
The CantiLover (the original booth organizer) has heavier trays and bins with covers. The Light has thinner trays and dividers. The JUMBO is twice the width: on a 180 or 256 bed each tier prints as two halves joined down the middle, and on a 320 bed each tier prints whole.
Which version are these pictures?
Light V3, CantiLover V4 and JUMBO V4 and V5 files, rendered as drawn. The Light's step pictures are drawn from its V2 files: V3 changed the cover notch and added a second leg that prints flat, so the steps are the same.
Where are the files?
On TeamGraphika's Patreon. Printed Layer hosts none of them; our free add-ons are shared in his community Discord.
Get the stand and the add-ons
TeamGraphika's files are on his Patreon, and our free add-ons are shared in his community Discord.
